Description
- High-concerned chemical: None
- is_customized: Yes
- Pixels: 1.25mm
- Display Function: VIDEO
- Tube Chip Color: Full Color
- Model Number: P1.25
- Brand Name: Yao Cai Xing
- Origin: Mainland China
- Use: Indoor
- Lamps: SMD 1010
- Module Size: 320mmx160mm
- Module Resolution: 256x128pixels
- Scan Method: 64scan
- Module Weight: 0.6kg
- Module Power: 35w
- Input Voltage: 5V
- Interfcae Way: 16PIN
- Play Format: Videos , images, pictures
- Warranty: 3 years
Specification
|
Module Parameter |
||
|
Size |
160mm(H)×320mm(W) |
|
|
Module Resolution |
128(H)×256(V) |
|
|
Pitch |
1.25mm |
|
|
Density |
640,000 pixels/m² |
|
|
LED Lamps |
SMD1010 |
|
|
Driver IC |
FM6565/6373/6363 |
|
|
Modules Refresh |
4880hz |
|
|
Mask |
Pure Black mask-high contrast screen |
|
|
Electricity Parameter |
||
|
Optical Ratings |
||
|
Brightness Of White Balance |
≥600cd/m² |
|
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
|
View Distance |
0.5m-120m |
|
|
Gray Scale |
65536 |
|
|
Display Color |
3-in-1 RGB |
|
|
Brightness Adjustment |
100 levels |
|
|
Power Supply |
||
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
|
Maxim Power Consumption |
1000w/m² |
|
|
Average Power Consumption |
400 w/m² |
|
|
Control System |
||
|
Correction Scale Level |
16bits |
|
|
Screen Refresh Frequency |
1920Hz |
|
|
Gamma Correction |
-5.0—5.0 |
|
|
Support Input |
HDMI,DVI,VGA,RJ45,USB,Serial Port |
|
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
|
Support VGA Mode |
1024×768,1920×1080 |
|
|
Color Temperature |
5000-9300 adjustable |
|
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
|
Reliability |
||
|
Temperature |
Storage:-35℃-+80℃ ; Operation :-25℃-+45℃ |
|
|
Humidity |
Storage:10-70% RH ; Operation:10–60% RH |
|
|
Operating Life |
≥100,000 hours |
|
|
MTBF |
≥5000 hours |
|
|
Continuous Working Time |
≥48 hours |
|
|
Protection Level |
IP20 |
|
|
Out of Control Pixel Rate |
≦0.03% |
|

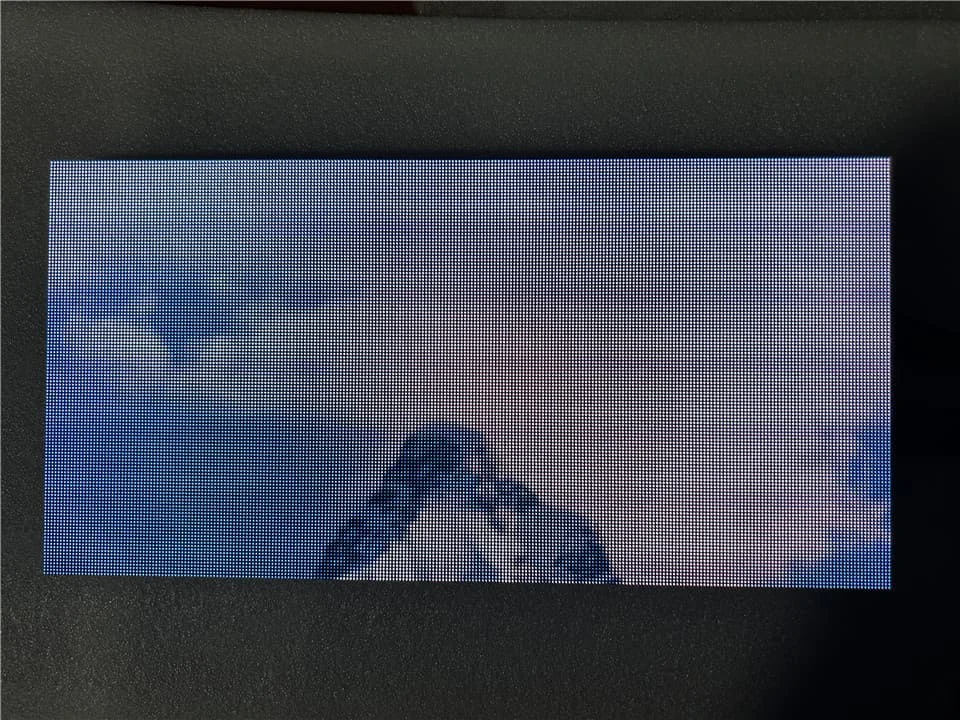

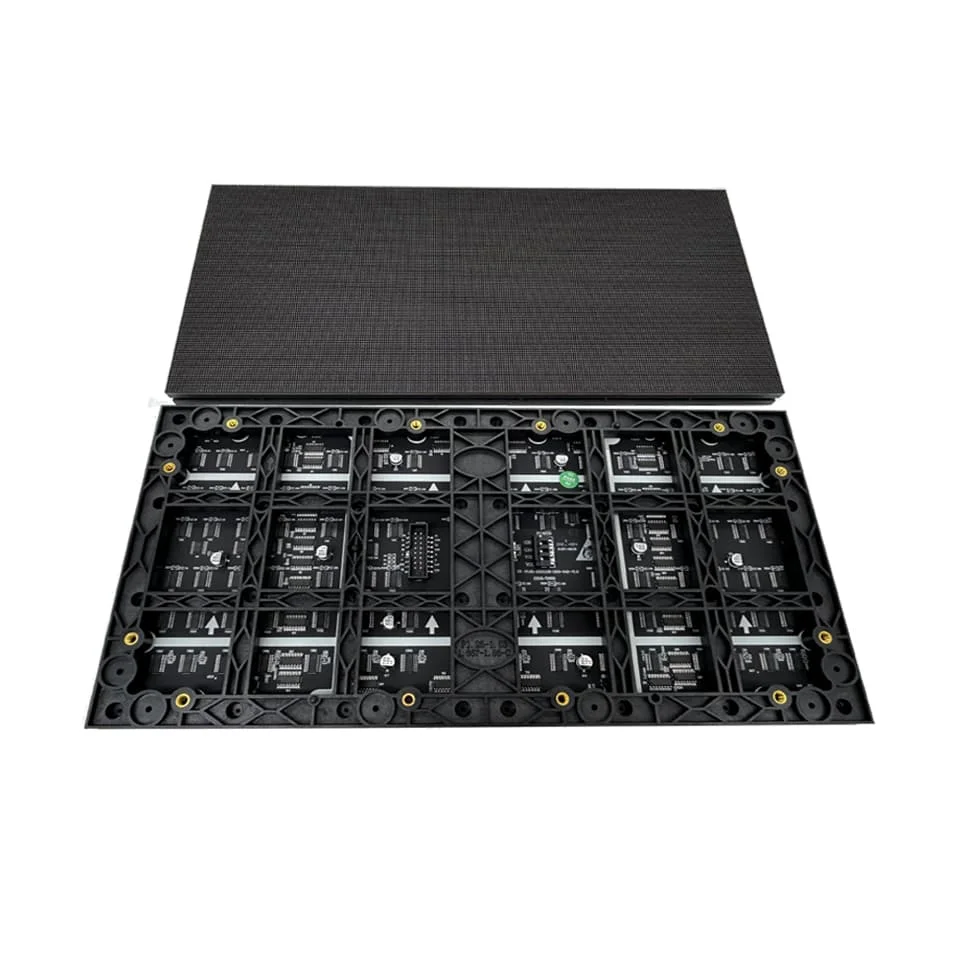

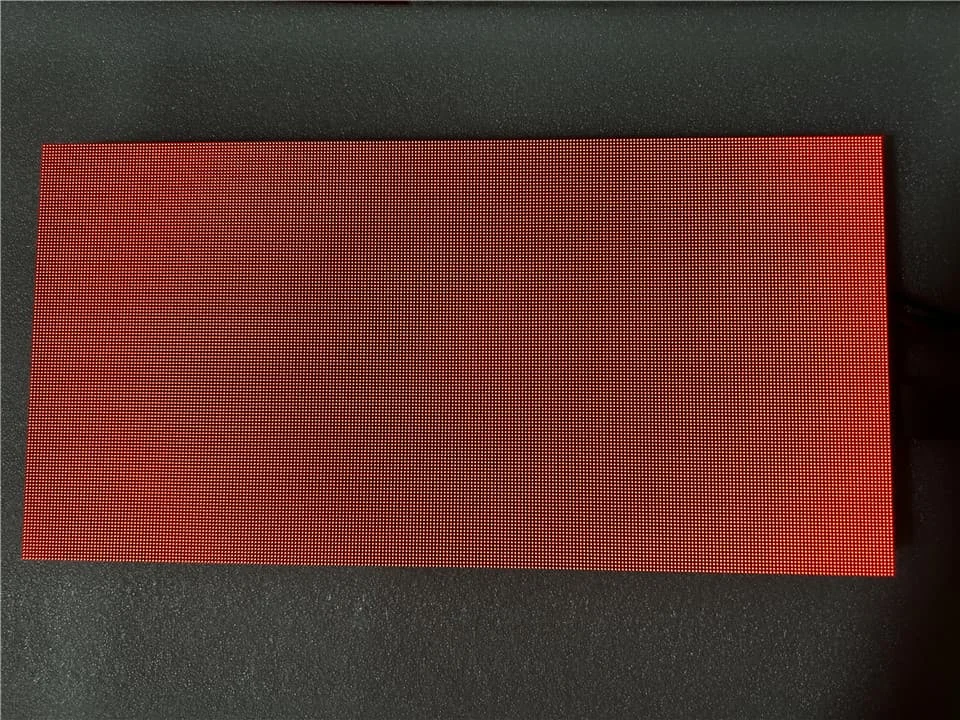

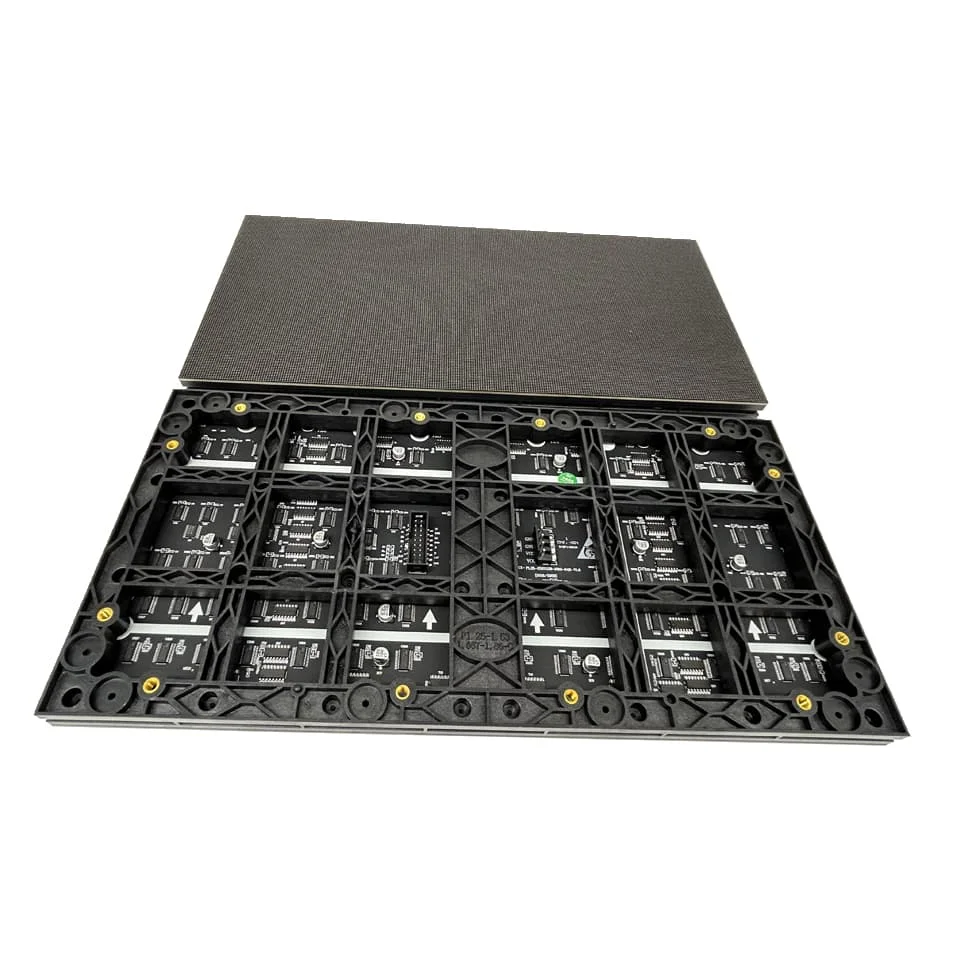

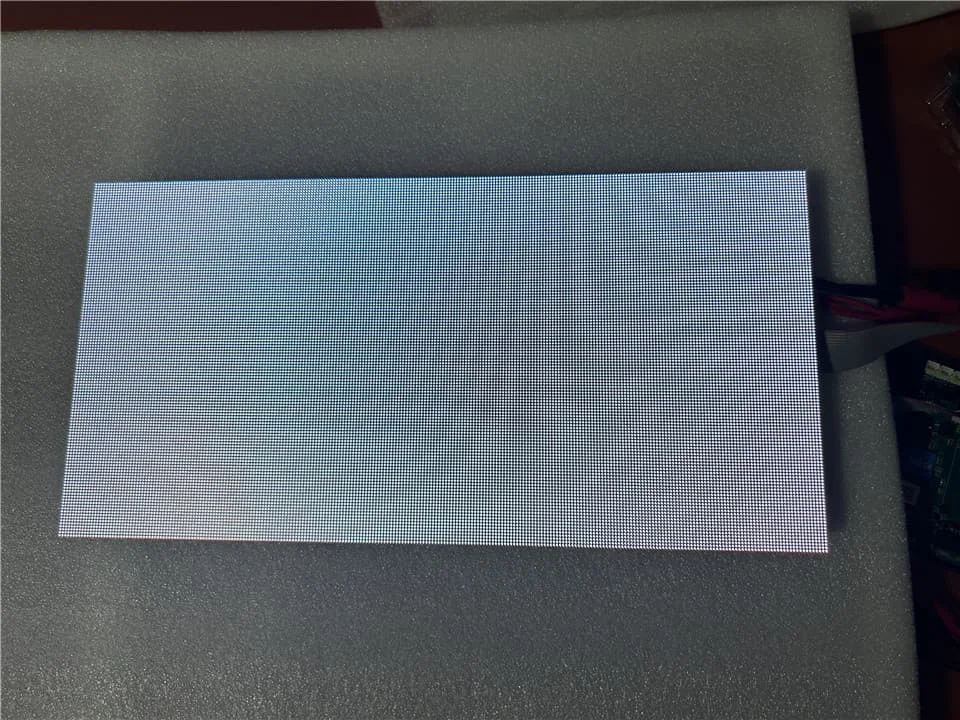

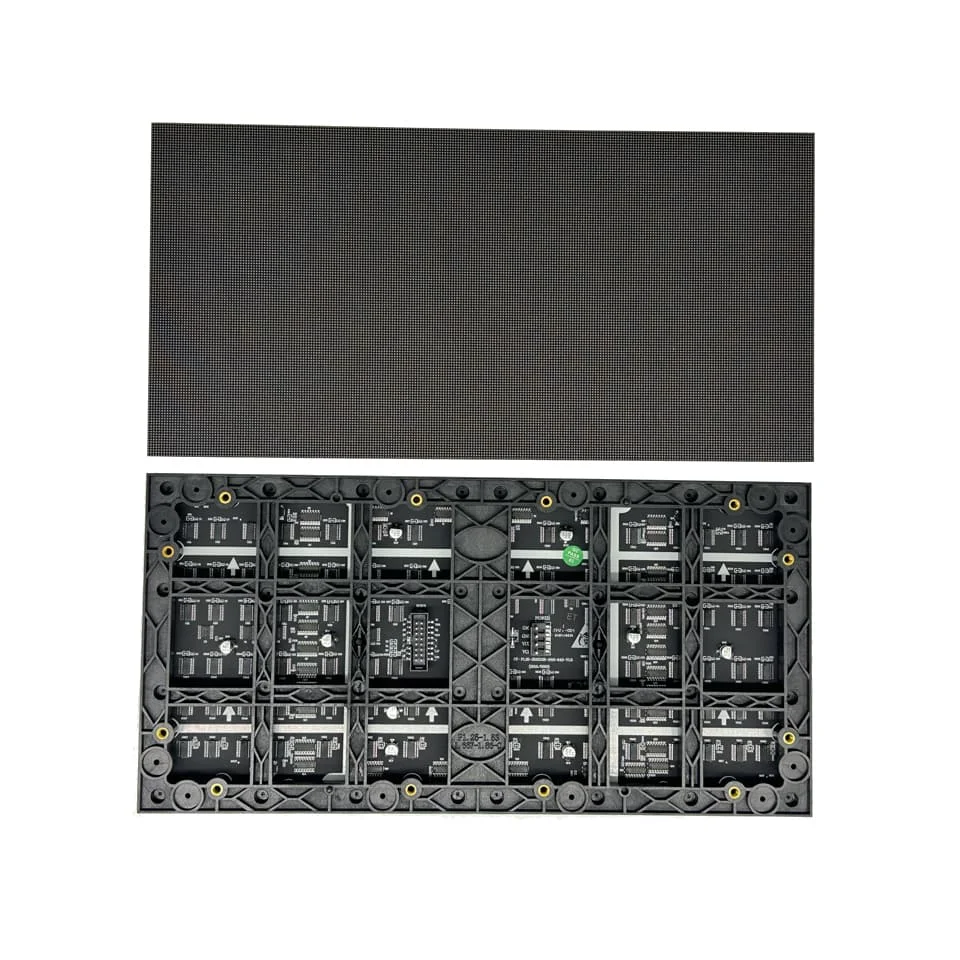

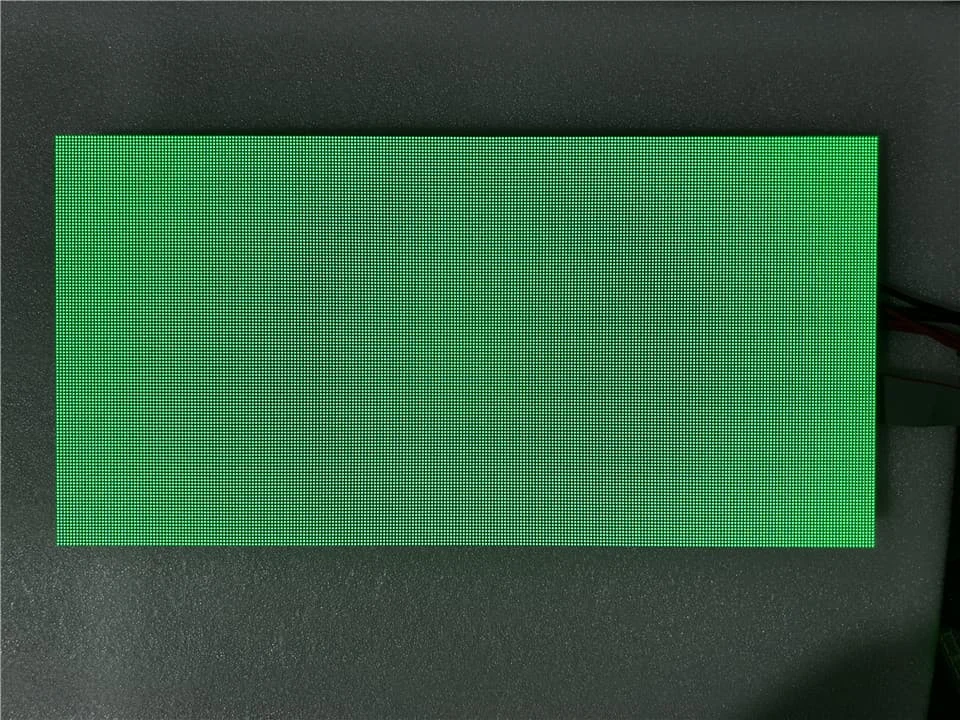

Pictures

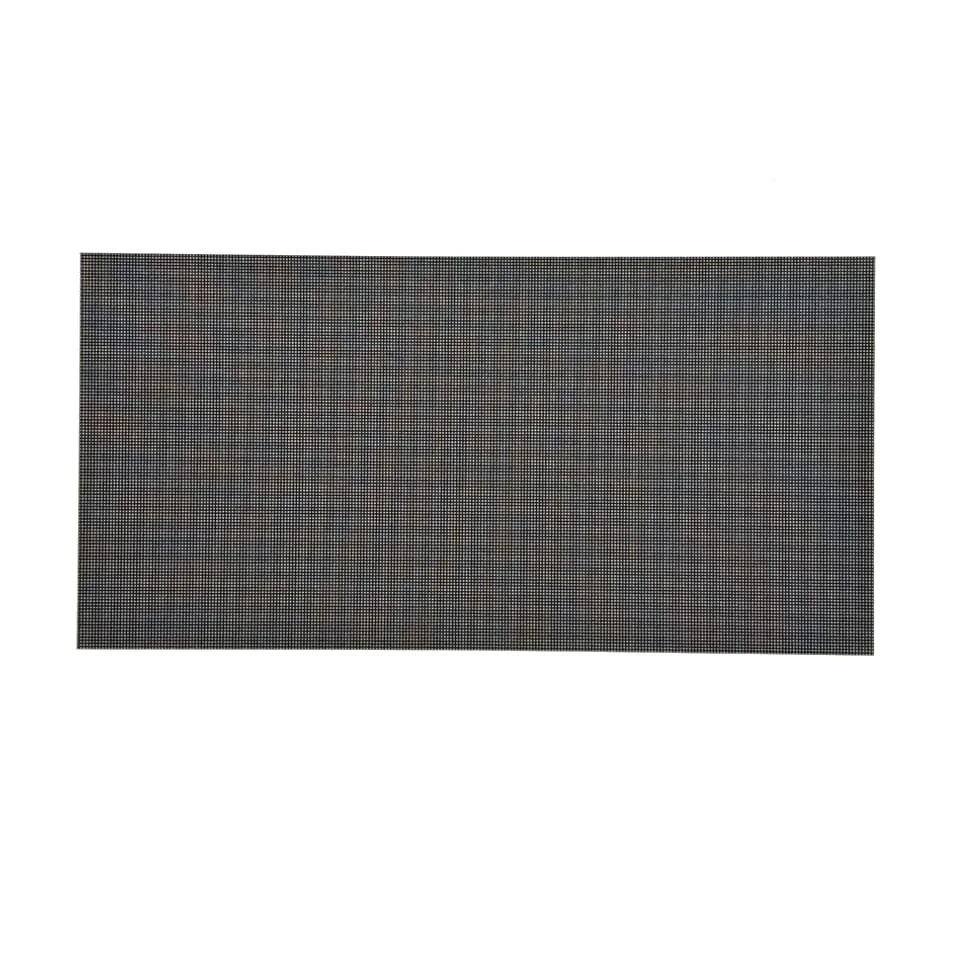

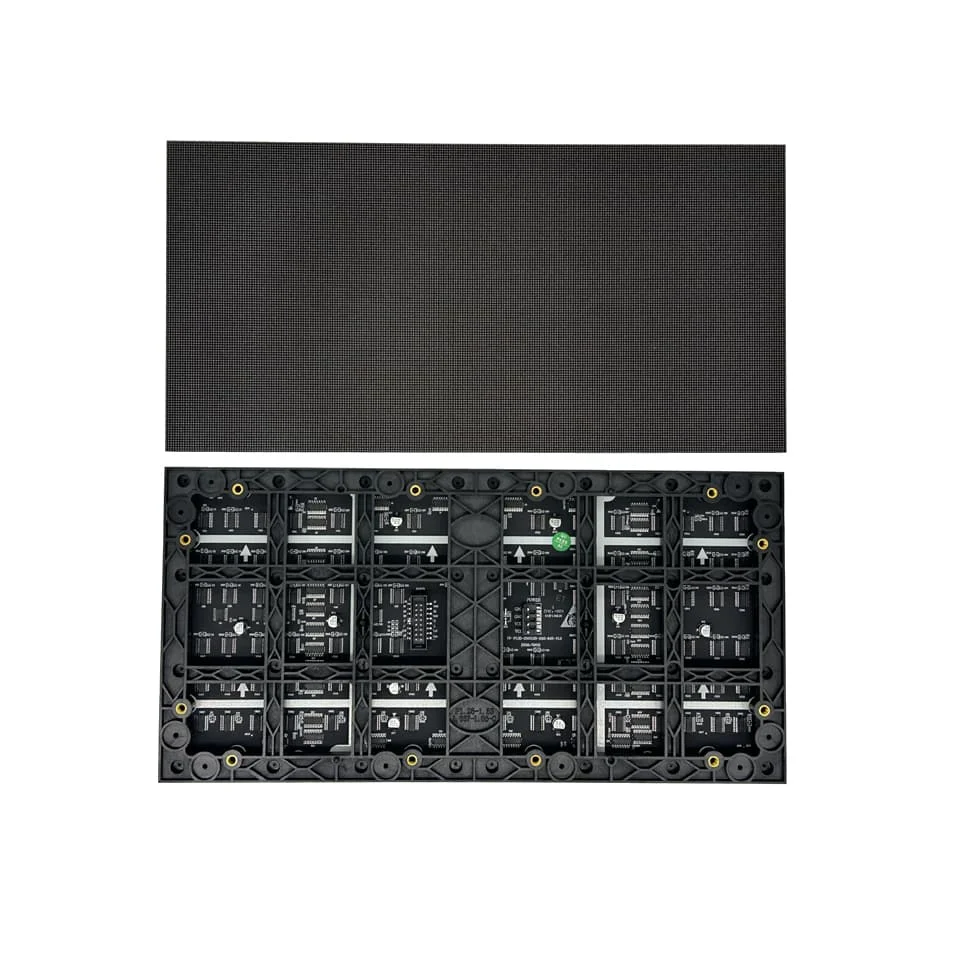

– Smaller pitch module without mask
– SMD1010 black lamps

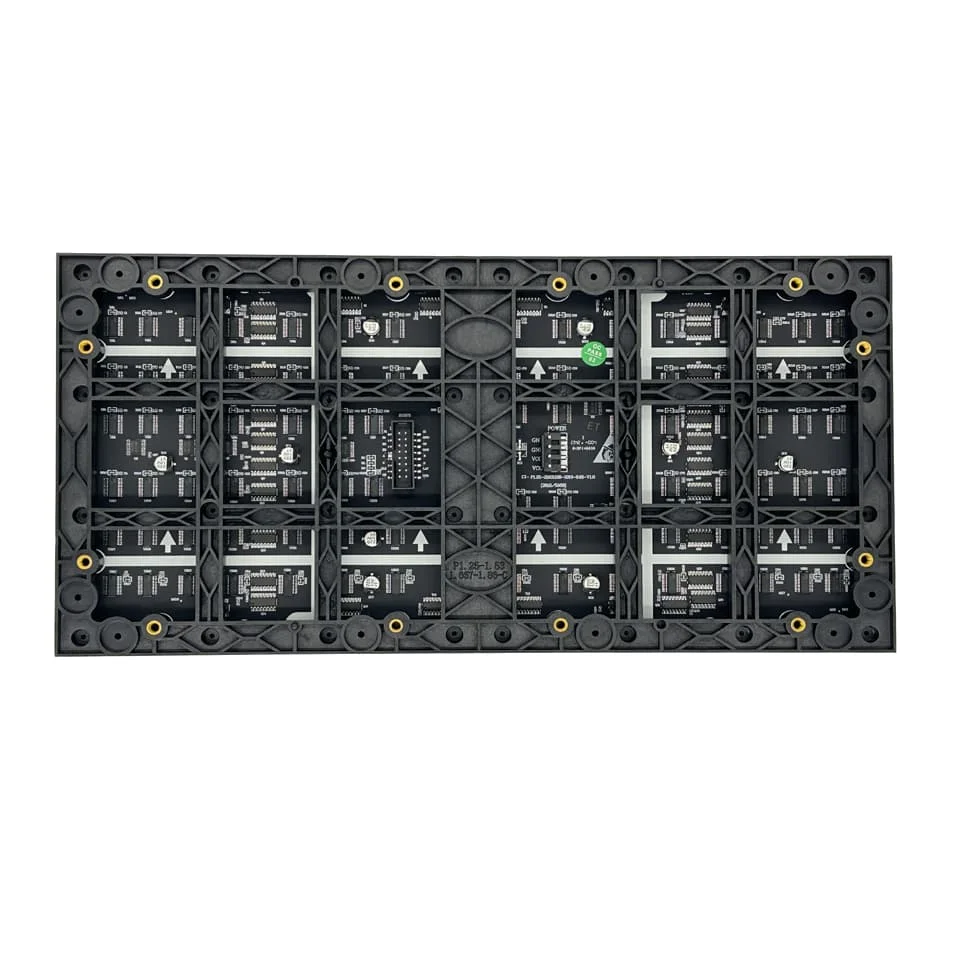

-The thickness of the PCB plate is two to three times that of the conventional module.
– The data interface uses the conventional 16pin
– Convenient power outlet, safety and quickly
– You can use screws fix the modules , magnets also available
– Modules not waterproof ,keep it dry
– Modules materials are plastic , keep far away from water
Hope you love and choose us ,thanks for your surpport
we'lltry to do better and better in the future.
